Alfa Laval Shutter Valves

Alfa Laval Shutter Valves

Alfa Laval Shutter Valves are ideal for high viscous product applications.

  • Sanitary design for maximum product safety
  • Well-suited for strict requirements minimizing pressure loss

Description

The MH Shutter valve from innovation leader, Alfa Laval is suitable in applications with high viscous products, products with large particles or strict requirements minimizing pressure loss.

Ā


Alfa Laval Shutter Valve Benefits

Maximum product safety

Minimizes pressure loss

Sanitary design

Manually or pneumatically operated

Application and Design

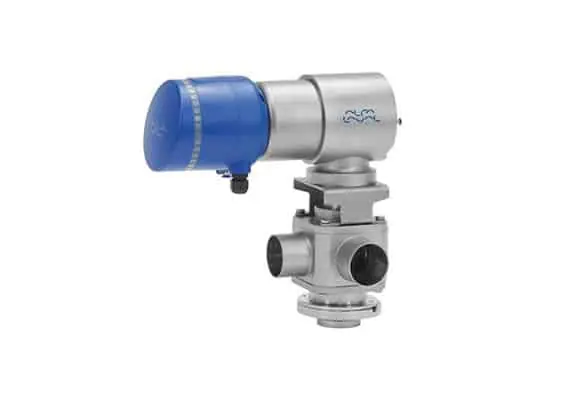

MH Koltek valve is a manually or pneumatically operated valve, designed for use in the food, pharmaceutical or other high purity industries when sanitary design is required. The standard design of the valve consists of a rigid body with an internal cylindrical bore and two or three ports for pipe connection. The two lids have guide rings for an internal shaft which supports and positions the shutter. The stainless steel handle of the actuator is fitted to turn the shaft.

Ā

The actuator consists a system of cylinders and one or two main pistons interconnected with a toothed bar which interacts with a gear wheel on the valve shaft. The system is insensitive to pressure shocks in the valve. The valve has welding ends as standard.
